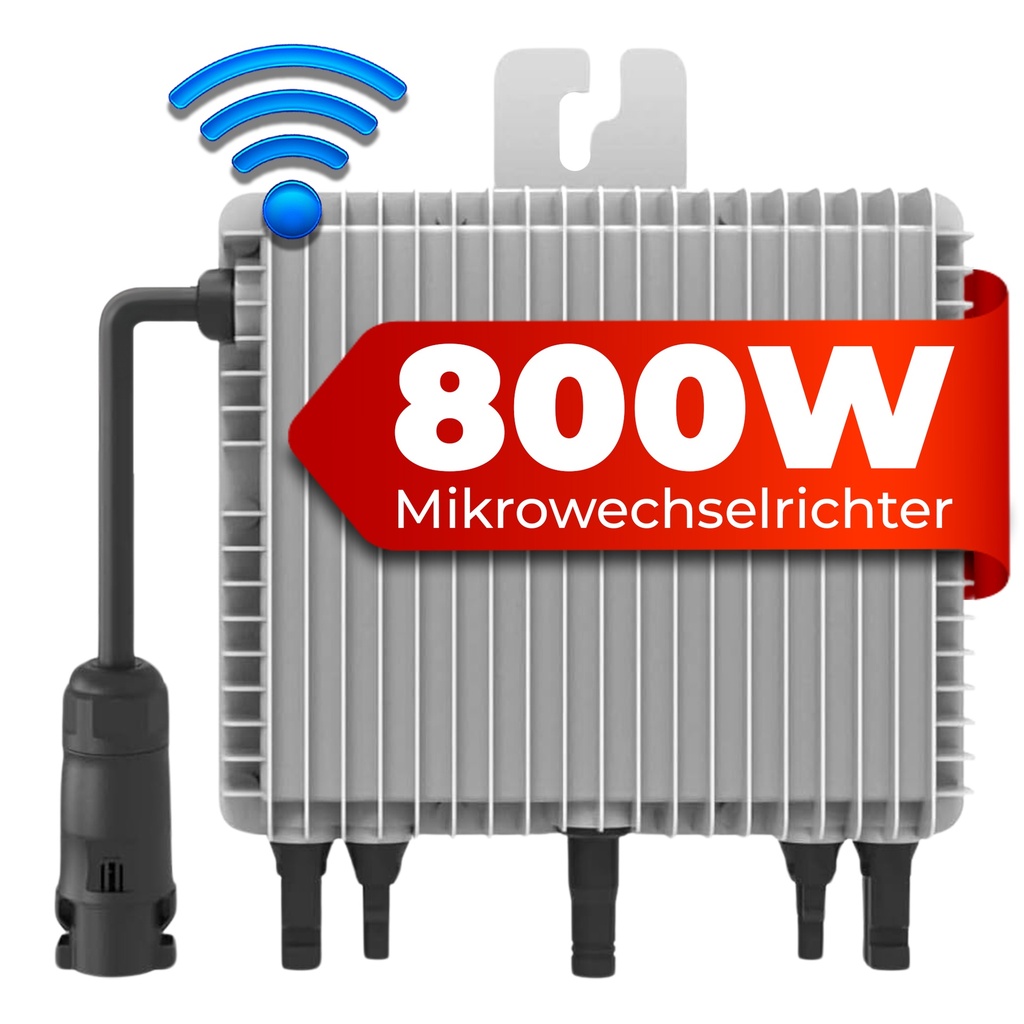

SUN-M80G3-EU-Q0
Input Data (DC)
Recommended InputPower (STC):
210-600W (2 Piece)
Maximum InputDCVoltage (V): 60
MPPT Voltage Range (V): 22-55
Full LoadDC VoltageRange (V): 33-55
Output Data (AC)
Max.Output ApparentPower (VA): 800
RatedOutput Power (W) 800 1000: 800
RatedOutput Current(A):
3.7/3.5
Max.AC Output Current (A):
3.7/3.5
Grid Connection Form Rated output voltage/range (V):
L+N+PE 220V/184V-242V 230V/ 195.5V-253V
Rated Grid Frequency/range (Hz):
50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Power Factor AdjustmentRange:
>0.99
Power Factor AdjustmentRange:
<3%
DC ComponentOf Grid:
<0.5%ln
Maximum Units per Branch: 6
Efficiency
Max Efficiency: 96.5%
MPPT Efficiency: >99%
Mechanical Data
Night Time Power Consumption : 50mW
Ambient Temperature Range: -40-65℃, >45℃ Derating
Cabinet Size (WxHxD mm):
190×212×40 (Excluding Connectors and Brackets)
Weight(kg):
2.8
Cooling:
Free Cooling
Enclosure EnvironmentalRating: IP67
Features
Communication: WIFI
Grid Connection Standard:
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G98, VDE-AR-N 4105
Safety EMC / Standard:
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
