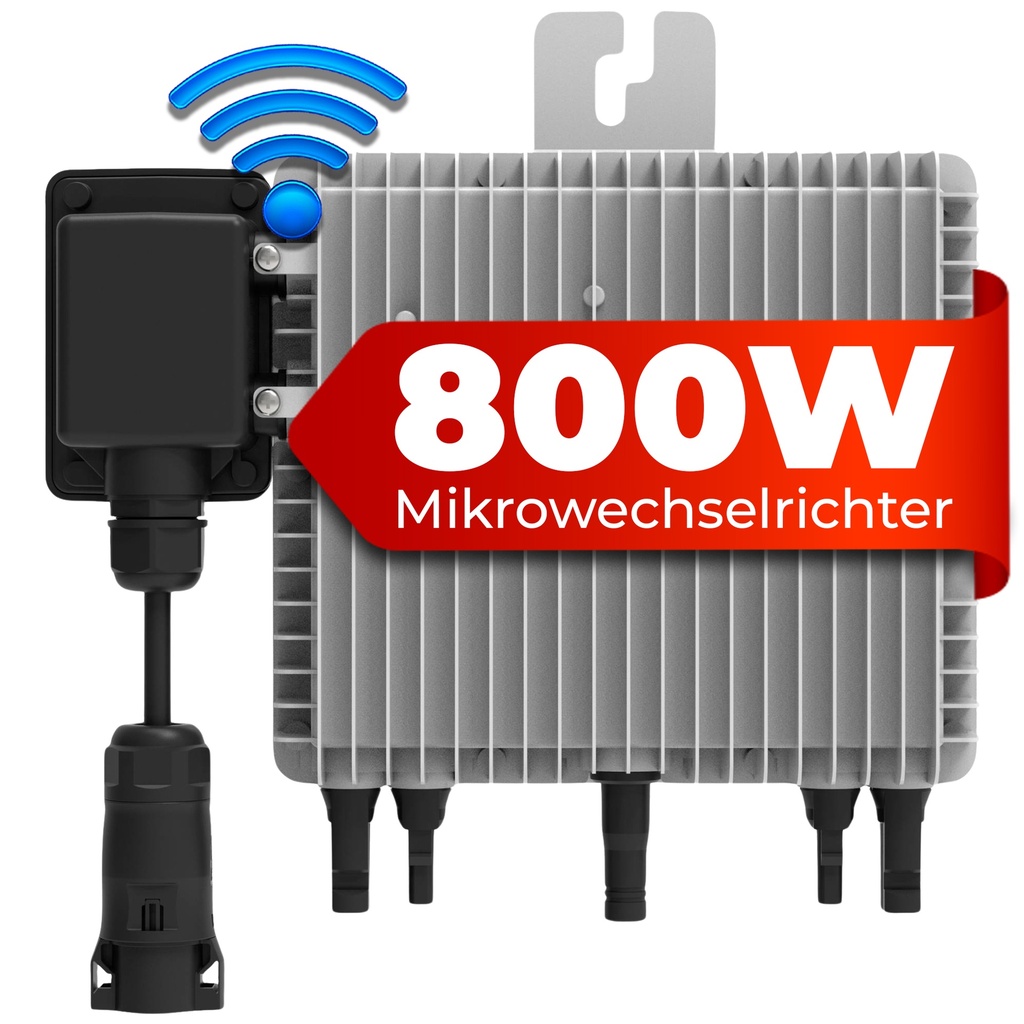

Deye SUN-M80G4-EU-Q0 | Mikrowechselrichter für Balkonkraftwerk

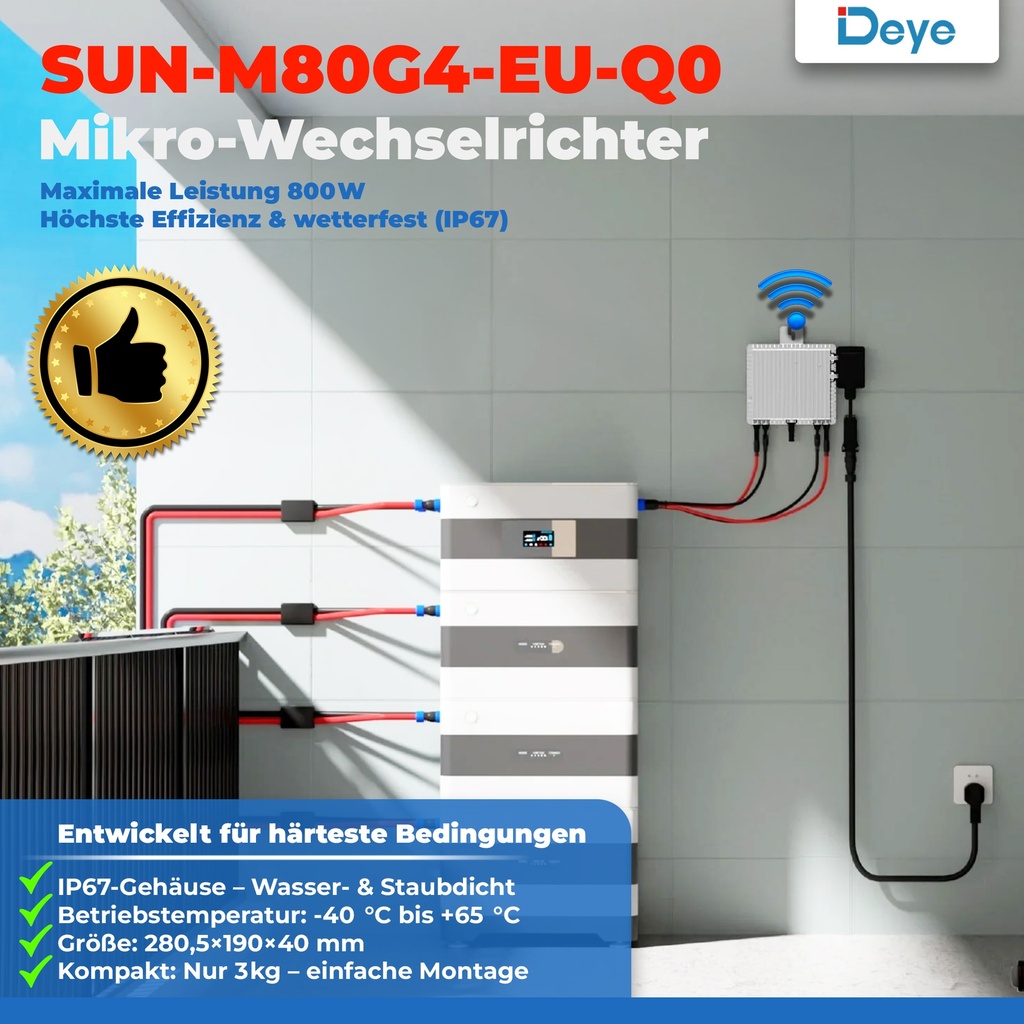

SUN-M80G4-EU-Q0

PV String Input Data

Max. PV Input Power (W): 210-560(2 Pieces)
Max. PV Input Voltage (V):  60
Start-up Voltage (V):  20
MPPT Voltage Range (V): 20-55
Rated PV Input Voltage (V): 42.5
Max. Operating PV Input Current (A):  13+13
Max. Input Short Circuit Current (A):  19.5+19.5
No. of MPP Trackers/ No. of Strings MPP Tracker:  2/1

AC Output Side

Rated AC Output Active Power (W): 800

Max. AC Output Apparent Power: (VA) 800

Rated AC Output Current (A): 3.7/3.5

Max. AC Output Current (A): 3.7/3.5

Rated Output Voltage/Range (V): 220/230 0.85Un-1.1Un

Grid Connection Form:  L/N/PE

Rated Output Grid Frequency/Range(Hz):  50/45-55, 60/55-65

Max. Unit per Branch: 6

Power Factor Adjustment Range:  0.9 leading-0.9 lagging

Total Current Harmonic Distortion THDi:  <3%

DC Injection Current:  <0.5%ln

Efficiency

Max. Efficiency:  96.5%

Euro Efficiency:  96.0%

MPPT Efficiency:  >99%

Equipment Protection

DC Polarity Reverse Connection Protection: Yes

AC Output Overcurrent Protection: Yes

AC Output Overvoltage Protection:Yes

AC Output Short Circuit Protection: Yes

Thermal Protection: Yes

DC Terminal Insulation Impedance Monitoring: Yes

Power Network Monitoring: Yes

Island Protection Monitoring: Yes

Earth Fault Detection: Yes

Overvoltage Load Drop Protection: Yes

General Data

Operating Temperature Range (°C):  -40 to +65℃, >45℃ Derating

Permissible Ambient Humidity: 0-100%

Permissible Altitude (m):  2000m

Noise (dB):  ≤25

Ingress Protection(IP) Rating:  IP 67

Inverter Topology:  Isolated

Over Voltage Category:  OVC II(DC), OVC III(AC)

Communication:  Wi-Fi

Cabinet Size (WxHxD mm):  280.5×190×40 (Excluding Connectors and Brackets)

Weight (kg): 3

Type of Cooling: Natural Cooling

Grid Regulation: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,  G98, VDE-AR-N 4105

Safety EMC/Standard:  IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
