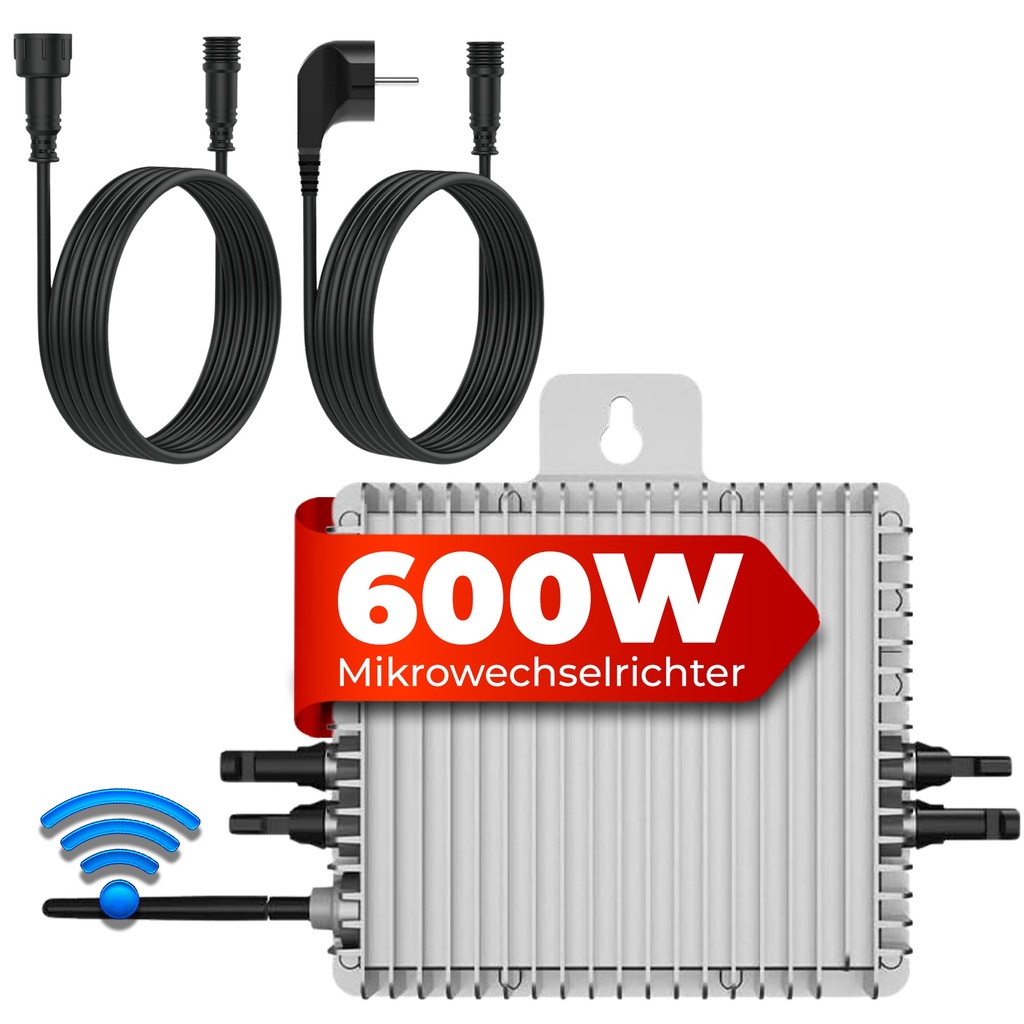

SUN600G3-EU-230
Input data (DC)
Recommended input power (STC): 210~400W (2 pcs)
Maximum DC input voltage: 60V
MPPT voltage range: 25~55V
DC operating voltage range: 20~60V
Max. DC short circuit current: 2×19.5A
Max. input current: 2×13A
Number of MPPT / Strings per MPPT: 2/1
Output data (AC)
Rated output power: 600W
Rated output current: 2.6A
Nominal voltage / range (may vary depending on grid standards): 230V / 184~265V
Nominal frequency / range: 50 / 60Hz
Extended frequency / range: 45~55Hz / 55~65Hz
Power factor: >0.99
Maximum number of units per string: 8
Efficiency
CEC weighted efficiency: 95%
Peak inverter efficiency: 96.5%
Static MPPT efficiency: 99%
Night power consumption: 50mW
Mechanical data
Ambient temperature range: -40~65℃
Size (mm): 212 W × 230 H × 40 D (without mounting bracket and cable)
Weight (kg): 3.15
Cooling: Passive cooling
Enclosure environmental rating: IP67
Features
Compatibility: Compatible with 60~72 cell PV modules
Communication: PLC / WIFI / Zigbee
Grid connection standard: EN50549-1, VDE0126-1-1, VDE 4105, ABNT NBR 16149, ABNT NBR 16150, ABNT NBR 62116, RD1699, UNE 206006 IN, UNE 206007-1 IN, IEEE1547
EMC / safety standard: UL 1741, IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-2, IEC61000-3-3
